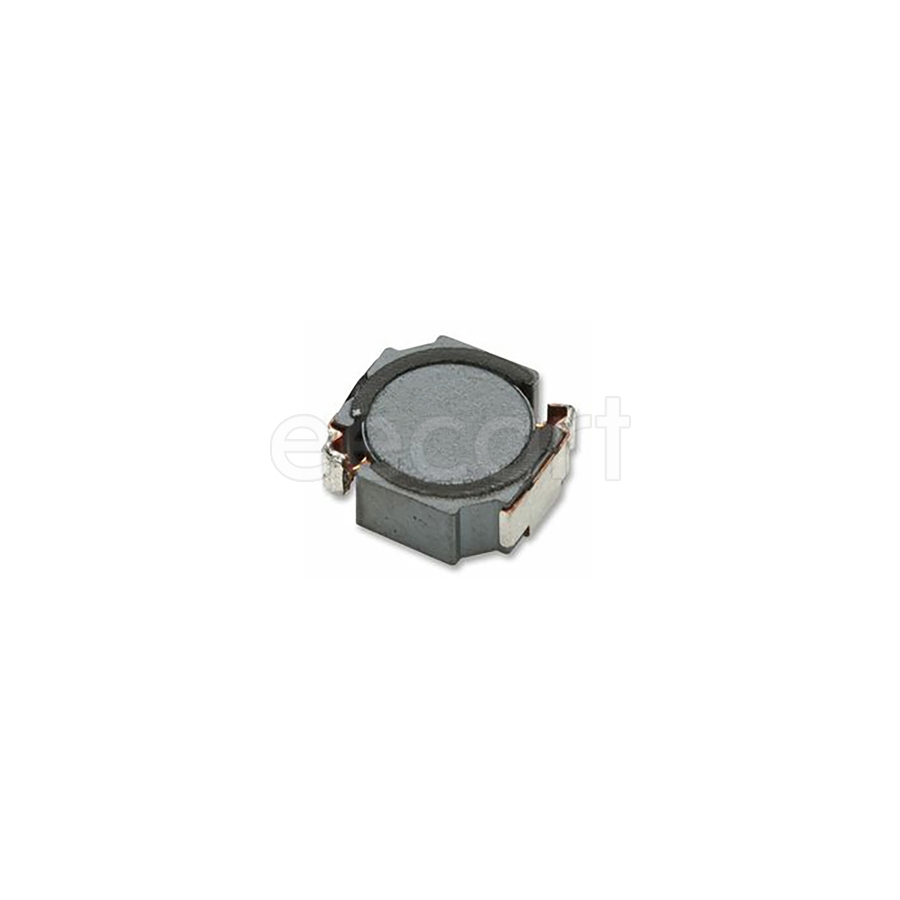

VLF10040T-4R7N5R4
Manufacturer:
TDK Corporation
Mfr.Part #:
VLF10040T-4R7N5R4
Datasheet:
Description:
Fixed Inductors 10.00mmL×9.70mmW×4.00mmH SMD/SMT 4.7 µH 30 % 5.4 A 15.3 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 3.99 mm |
| Length | 10.0076 mm |
| Width | 9.7028 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Resistance | 12.7 mΩ |
| Composition(Kit Type) | Wirewound |
| Height | 4 mm |
| Packaging | Reel |
| Depth | 10.1 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Current Rating | 5.4 A |
| DC Resistance (DCR) | 15.3 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Lifecycle Status | Obsolete (Last Updated: 1 year ago) |
| Shielding | Shielded |
| Inductance | 4.7 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 5.6 A |
| inductance tolerance | 30 % |
| Max DC Current | 5.4 A |
| DC Current | 5.4 A |
| Saturation Current | 5.4 A |
| Type | Wirewound |
